Track-mounted Impact Crusher

The WOCATSPOM crawler impact crusher is a high-performance, multi-functional mobile crushing equipment with a high-capacity double deck screen and a return conveyor, widely used in asphalt recycling, construction waste crushing, soft rocks and coal crushing; It can replace stationary crushing systems, which reduces the need for hauling and thus cuts operational costs.

The main machine is specially designed for mobile applications, and features a large feed opening and robust construction for long-lasting, reliable operation.

Model

TF350

TF350

The mobile impact crusher TF350 can be developed universally as an all-rounder and produces first-class final grain quality. It achieves a production rate that until now was only associated with considerably larger crushing plants. Thanks to its compact design, the plant is easy to transport and can be assembled and disassembled quickly.

Capacity Potential

300-500tph

Inlet Opening

1050mm x1700mm

Transport Dimensions

Height 4.193m | Width 4.244m | Length 19.822m

Working Dimensions

Height 4.832m | Width 11.192m | Length 21.439m

TF250

TF250

The WOCATSPOM TF250 is built around the powerful LF series impact crusher, which can crush medium hard rock types such as limestone as well as all rock-based recycled materials.

The LF crushers feature a large feed opening to avoid bridging and always provides high capacity and a high reduction rate.

The new engine module and hydraulic system provide more power for the crusher and enable lower fuel consumption.

Capacity Potential

200-400tph

Inlet Opening

960mm x1360mm m

Transport Dimensions

Height 4.1m |   Width 3.6m | Length 16.863m

Working Dimensions

Height 4.8m |   Width 8.81m | Length 20.42m

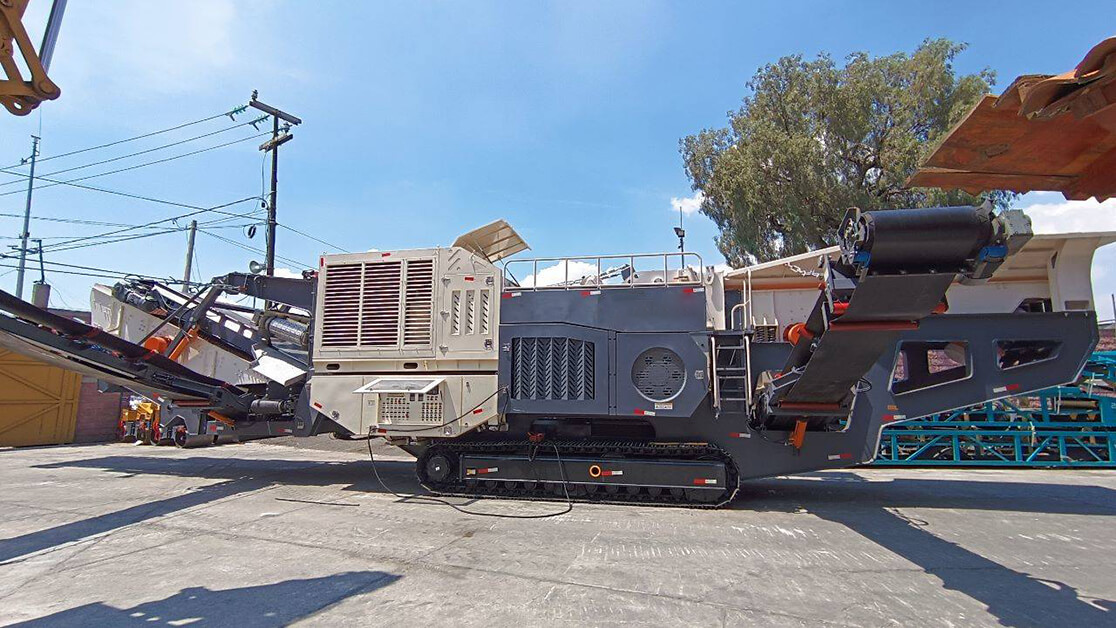

TF150

TF150

The WOCATSPOM TF150 Crawler impact crusher is a compact and upgraded mobile impact crusher, designed with the customer and operator in mind. It can crush any recycled material from asphalt to concrete and bricks.

The main machine adopts unique designs such as heavy-duty rotors, large-capacity crushing chambers, alloy high-wear-resistant plate hammers, and hydraulic opening devices, making it a very high crushing capacity and crushing ratio.

Model

TF150

Impact crusher model

LF150

Inlet Opening

820mm x980mm

Capacity

100-200tph

Working Dimensions

Height 3.85m | Width 7.786m | Length 17.2m
