150-200tph Limestone Crushing Plant

The customer is an aggregate production and construction company with its own limestone mine. With the expansion of market demand, the customer decided to upgrade the crushing production line to improve the capacity and efficiency in order to improve the efficiency of the enterprise. After many visits and communication, WOCATSPOM won the customer's trust with its high-quality project proposal, high-quality products and high-quality service, and finally closed the deal.

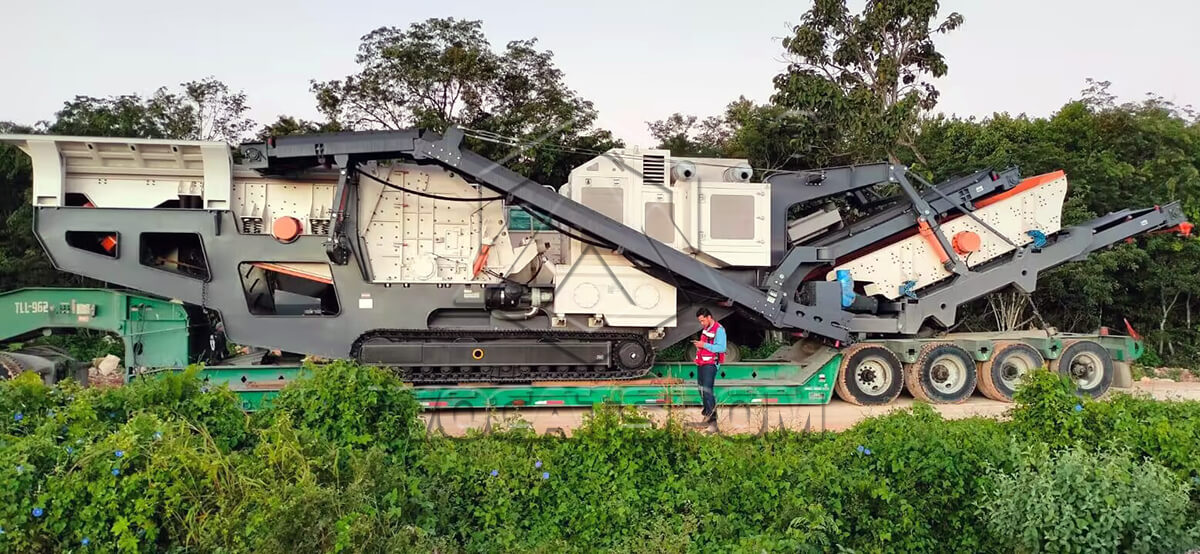

TF250 Track-mounted Mobile Impact Crusher

Client's requirements

Material: limestone

Input size: less than 25inch

Finished product: high-quality aggregate

Output Size: 0-1/4inch, 1/4-3/4inch

Capacity: More than 150 tph

Recommended Equipments

TF250 Track-mounted Mobile Impact Crusher

Main machines：

GZD Vibrating Feeder: Input Size：0-580mm, Capacity：200-430tph

Large Diameter Impact Crusher: Input Size：0-700mm, Capacity：200-400tph

ZSW Vibrating Screen: Input Size：0-400mm, Capacity：56-330tph

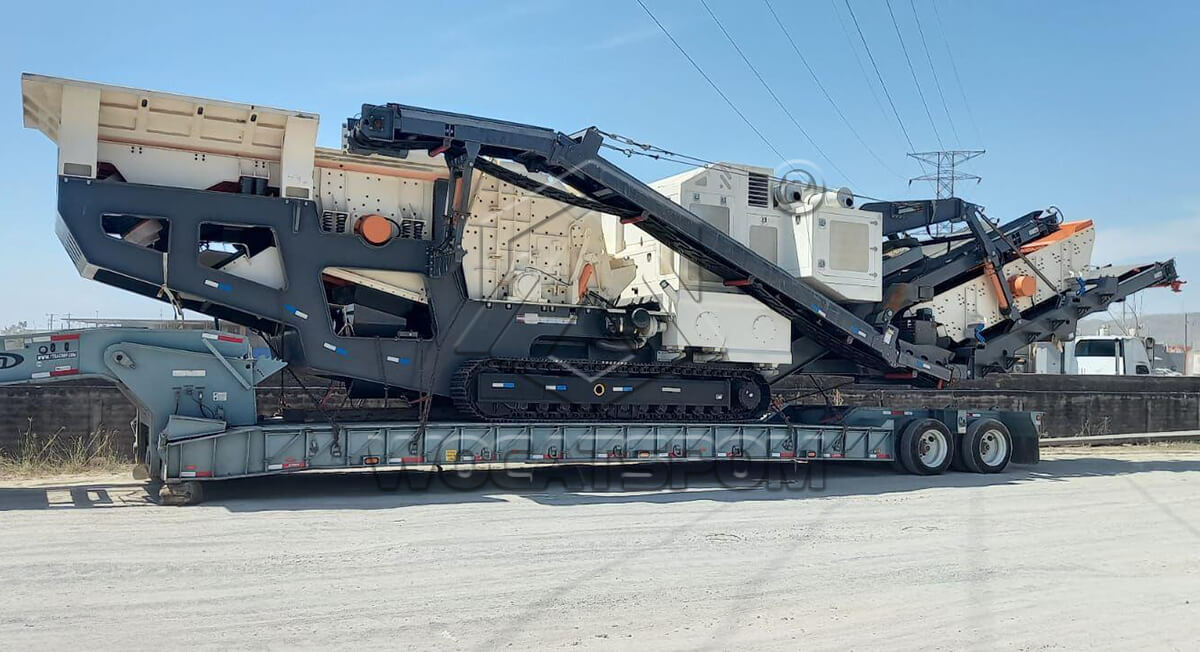

TF250 Track-mounted Mobile Impact Crusher

Project Advantages

Large feed opening and high adaptability. The TF250 Track-mounted Mobile Impact Crusher uses a large-diameter impact crusher as the main crushing plant, with a larger feed opening than a typical impact crusher of the same capacity, to meet the crushing of a wide range of raw material sizes.

Large crushing ratio and space saving. The crushing ratio of large diameter impact crusher is larger than that of general impact crusher, and one host machine completes the functions of primary crushing and secondary crushing, which greatly saves the land area.

Simple structure and easy maintenance. The integrated design of the whole machine makes it easy to install and maintain. The hammer bar is pressed by wedges, which is easy to dismantle, and the replacement of the hammer bar can be carried out conveniently with the designed special tool.

Closed-loop operation of a single machine saves costs. A single unit integrates vibrating feeder, impact crusher and vibrating screen, which can be operated in a closed loop without the need to configure another crusher, which greatly saves the cost of equipment investment.

Integrated control panel, easy and efficient to use. The whole machine control system is integrated into one control panel with PLC control, which is simple and efficient, and extremely convenient for operation, transfer and maintenance.

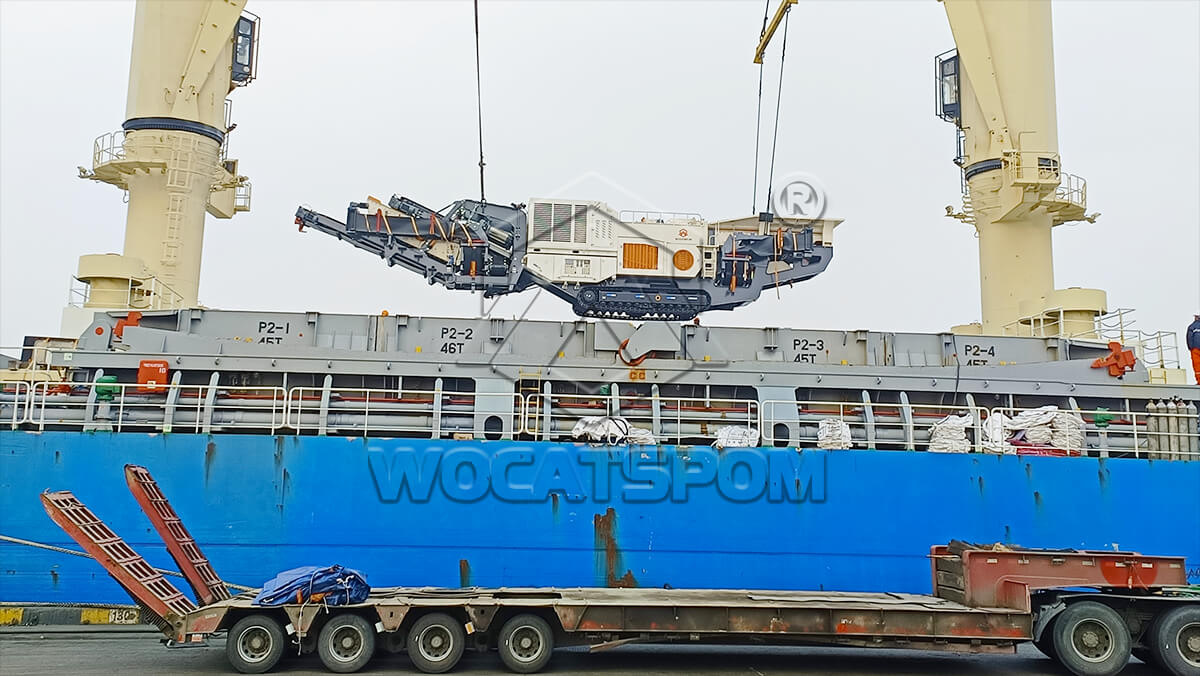

TF250 Track-mounted Mobile Impact Crusher

Client Feedback

After more than half a year of operation, the crusher is generally stable, the product particle size is uniform, and the output is more satisfactory, which is very helpful for the company's benefit improvement.
